Code Update on Vapor Diffusion Ports: What does it mean for Georgians?

Big news for Georgia builders and energy-conscious homeowners: vapor diffusion ports are back in the state’s building code!

Vapor diffusion ports have been in the International Residential Code (IRC) since 2018; however, Georgia deleted the language (section R806.5, Item 5.2) when it adopted the IRC 2018 in 2020. A review of the code last year brought this section back in, though few builders or contractors have been educated on what they are or why they matter.

What is a Vapor Diffusion Port?

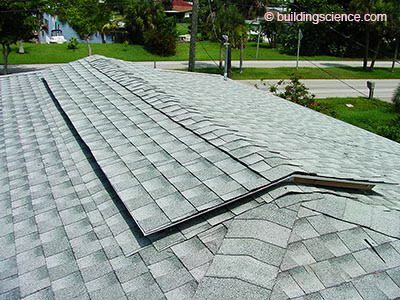

A vapor diffusion port, as the name suggests, is an air-tight location at the top of a roof assembly that allows water vapor to escape from a conditioned attic to the exterior by diffusion. Its purpose is to provide a relief pathway for high moisture buildup and to prevent condensation from developing within an insulated roofline, a situation that could create serious damage if left untreated. From the exterior, a vapor diffusion port looks exactly like a ridge vent, only the vented opening in the sheathing is covered with a vapor-permeable material such as housewrap or roofing underlayment. The seams of this material are air sealed to the roof sheathing to create an airtight assembly, then covered and protected with conventional ridge vent.

Why Does It Matter in Georgia?

Georgia, which falls within the hot and humid Climate Zones 2A and 3A, must grapple with the impacts of humidity on building performance even more than the impact of temperatures read by a thermostat. It is important that homes be able to dry, both with the proper selection of HVAC equipment and by designing a building envelope that allows water vapor to escape from building cavities. Conditioned attics and insulated rooflines are highly beneficial to the energy efficiency of homes in the state, as they allow builders to put the HVAC systems within conditioned space where they are much more likely to operate efficiently and effectively.

When Are Vapor Diffusion Ports Needed?

Vapor diffusion ports are especially important for homes with air-permeable insulation like fiberglass or rockwool installed along the roofline. These assemblies require careful air sealing, and—just like with spray foam—should have no soffit or ridge vents. In Georgia’s hot-humid climate, the 2018 IRC recommends installing vapor diffusion ports at the ridge to prevent condensation, particularly near the roof peak.

Warm, humid air naturally rises to the highest parts of a home. In unvented, conditioned attics used for mechanicals (but not living space), humidity levels can spike—especially if interior moisture from showers, cooking, or leaky penetrations isn’t properly exhausted or dehumidified. This moisture can travel through insulation and condense at the roof deck if it hits its dew point. A vapor diffusion port allows moisture vapor to escape outward while keeping the assembly airtight.

Many Georgia homes use open-cell spray foam, which is air-impermeable and less prone to condensation. These attics are typically kept in check by HVAC supply registers, and sometimes dehumidifiers if levels exceed 70%. Though not required, vapor diffusion ports may still offer a moisture relief valve in these assemblies.

Spray foam, however, isn’t ideal for every project. Some homeowners are sensitive to its chemicals, others are concerned about its environmental impact, and cost can be a barrier. For these reasons, many builders opt for fiberglass or rockwool, which work well in unvented, conditioned rooflines—especially when paired with vapor diffusion ports. Even in spray foam assemblies, these ports offer extra protection by providing a vapor-permeable, airtight escape at the roof’s highest point.

What Does the Code Say?

What does the IRC say? Section R806.5, Item 5.2. covers unvented attics and unvented enclosed rafter assemblies. Highlights of this section include:

• Vapor diffusion ports are allowed in Climate Zones 1, 2, and 3
• The vent should be installed not more than 12 inches from the highest point of the roof.
• The size of the vents should be 1:600 of the ceiling area
• The vapor-permeable membrane covering the vent should have a perm rating of ≥20 perms. The seams of this membrane should be sealed to maintain an air tight roof assembly.
• The roof should have a slope of at least 3:12.
• When air-impermeable insulation is used it should be installed either directly above or below the roof sheathing.
• The attic space should be conditioned with a minimum of 50 CFM per 1,000 ft² of floor area.
